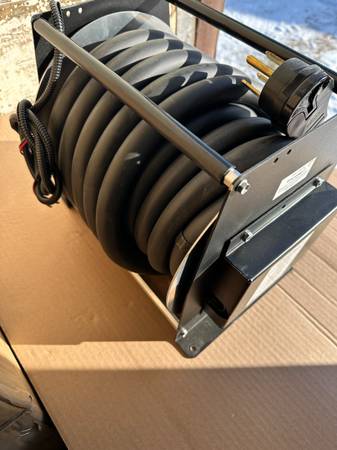

Southwire RL54331LMK Powered RV Low Profile Cord Reel 50 Amp 33' RL54 - $950
condition:
like new
make / manufacturer:
Shoreline Reels
model name / number:
RL54
size / dimensions:
33'
QR Code Link to This Post
(3) available
Model: RL54 (RL54331LMK, replaces: CL50D02L-SR)
50 Amp
33' cord
125/250 VAC
12Vdc

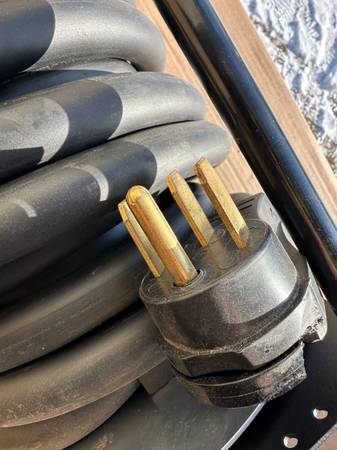

Condition: Surplus with blemishes pictured. Had slight damage to outer plastic plug end or cord as pictured. Works as should. Comes as pictured. Check our listings for other cord reels!
All items may need misc. nuts, bolts, screws, parts and additional assembly for functionality. Comes as pictured.
Measurements:
8.71" W X 11.5" D X 16.5" H
Bolt pattern: Around 8" on center Left to Right, 13 3/8" on center Front to Back
Specs: https://www.invertersupply.com/media/data/505-00094b%20rl5%20instruction%20sheet.pdf
Low Profile Design allows for installation in low compartments or frame of 5th wheel
Typically used in Fifth Wheels or Coaches with shorter compartments
Easily installs with common hand tools
33 feet of 6/3 8/1 Flexible Cord
RL54
Dimensions 8.71" W X 11.5" D X 16.5" H
Drive System 12 VDC or 24 VDC chain drive gear motor. No clutches - system always engaged
Amp Draw 4-6 Amps in normal operation. Up to 12 Amps in locked rotor condition - motor overload trips between 10-12 Amps depending on duration.
Weight Cord reel with 33 feet of 6/3 8/1 cord and 4 foot pigtail is 48 pounds
No other cord reel device retrieves more quickly or stores more compactly. Pull the cord and it free-spools off the reel you only pull off what you need. To retrieve, push the button (motorized) or turn the hand crank (manual). Optional floor portal and roller kits are recommended for cords exiting through storage compartment floors. If your RV has a twist lock plug in the storage compartment, optional female twist lock connector on the end of the pigtail simplifies installation.
NEW! High torque motor provides 3x pulling power of previous design
NEW! Quieter Operation
Reel free spools for cord removal and is powered in by drive motor
No remote controls necessary
Eliminates tangled and kinked cords
Non-stiffening, super flexible power cords
Reels are hard wired into the coach
Spool sides and core are anodized aluminum
Side frames powder coated galvanized steel
Reels can be black or white in color
Great vintage piece for bank, jewelry store, etc. Please see all pictures for accurate descriptions.
Any major signs of wear/defects will be noted or pictured. Minor bottom scuffs/wear may occur on bottom edges/corners from moving and/or shipping. Can be crated and shipped at buyers expense. Please Send your phone number and Zip Code for a Quote.
---Standard Mail Shipping---Freight Shipping--or--Local pickup---
